Wet shotcrete machine| JIUHE HP30G| sale for tunnel construction| china manufacturer
- Model
- HP30G
Item specifics
- Max. theoretic delivery volume
- 30m3/h
- Spraying height
- 16m
- Chassis
- JIUHE Produced Engineering chassis
- Chassis power
- 93kw
- Electromotor
- 75kw
- Concrete cylinder
- 180mm
- Max.aggregate size
- 25mm
- Boom pipe before telescopic boom
- steel, dia. 100mm
- Telescopic boom
- rubber hose, dia. 80mm
- Mai oil cylinder
- 100mm
- Accelerator agent pump
- Screw type
- Accelerator agent bucket
- 1m3
- Emergency system
- close and clean machine
- Application
- Tunnel construction
- Function
- Spary wet concrete
Review
Description
China Factory Direct Supply JIUHE Brand HP30G Wet shotcrete machine For Sale
As a new generation JIUHE produced upgrading engineering chassis wet shotcrete machine, which is researched and developed after synthesizing wet shotcrete machine technology domestic and oversea, solving spraying deficiency that traditional small shotcrete machine cannot meet concrete spraying need in long and big tunnel, vastly improving the working environment for workers inside tunnel, increasing working efficiency, reducing concrete consumption, truly ensuring working quality, double power working system, lower carbon emission, Suiting environmental protection concept. JIUHE engineering chassis wet shotcrete machine is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.
Features
1. big delivery capacity, big diameter concrete cylinder, long route spraying pump, high reliability and good adaptability.
2. strong mobility, convenient transferring, concern several jobsites.
3. motor system, strong adaptability, high reliability.
4. Mechanical arm flexible actions, large working area, no working blind zone.
5. Accelerator dosage and concrete volume can be matched automatically to reduce accelerator consumption.
6. Highly cost effective, durable machine, easy maintenance, easy to buy parts.
Video
China Professional Manufacturer JIUHE Brand Profile
JIUHE is professional manufacturer in China for wet shotcrete machine for tunnel construction, we are factory directly supply, both quality and service can be ensured.
JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter
|
1.whole machine data |
|
|
Model |
HP30G |
|
total length |
7800mm |
|
total width |
2480mm |
|
total height |
3240mm |
|
rated weight |
20T |
|
2. Boom & support legs
data |
|
|
spraying height |
16m (15m machine height) |
|
spraying width |
24m (23.2 machine width) |
|
big boom pitching angle |
0-70° |
|
small boom pitching angle |
+20°-110° |
|
boom rotation angle |
360° |
|
spray-head swing angle |
360° |
|
3. pumping system data |
|
|
driving mode |
Motor |
|
Motor rated power |
75kw |
|
Motor working voltage |
380V |
|
concrete delivery capacity |
30m³/h |
|
hydraulic system |
Open |
|
delivery pipe dia. |
Φ125～φ80mm reducing |
|
spray nozzle dia. |
Φ50mm |

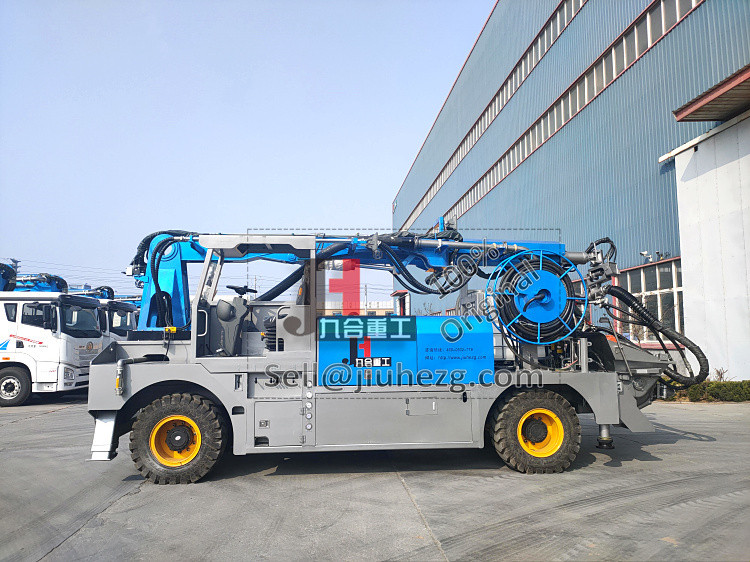

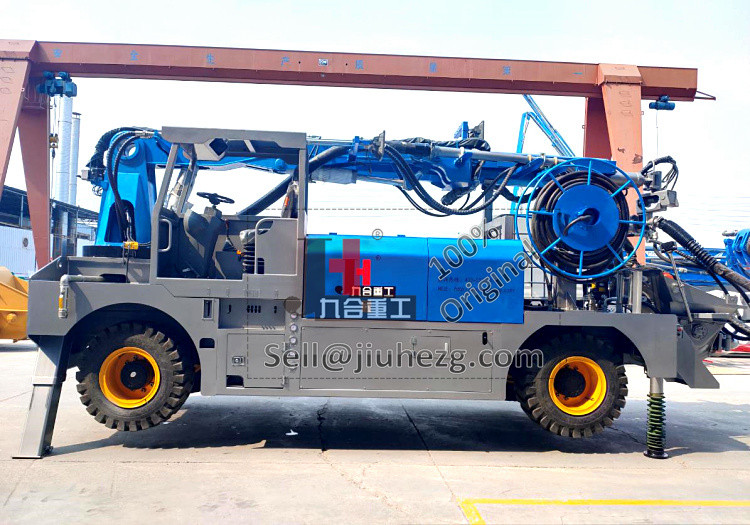

Machine Photo
