Model: DHBT60

Item specifics

Concrete pumping capactiy: 60m3/h

concrete pumping height: 180m

concrete pumping distance: 500m

System Working Pressure: 32MPa

Concrete Cylinder: 200

Max. aggregate dimension: 40mm

power system: 130kw

Hydraulic oil circuit type: Open circuit

Lubrication: auto lubrication

Review

Description

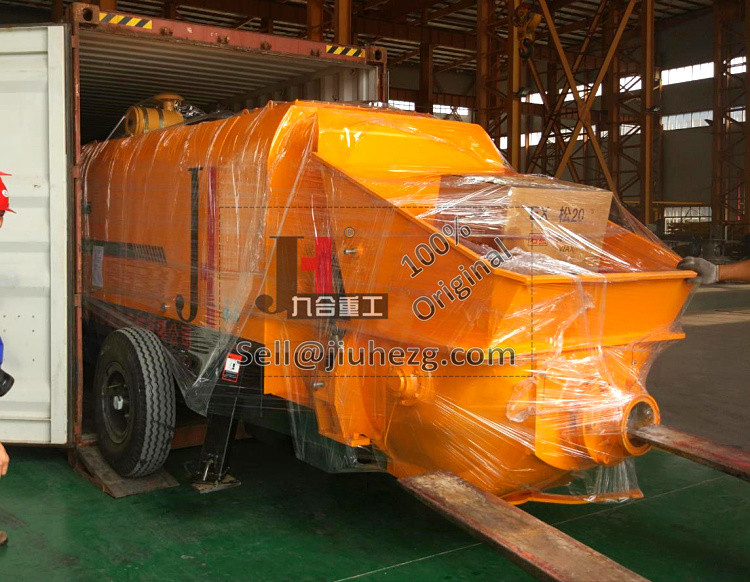

China Factory Direct Supply JIUHE Brand DHBT60 diesel concrete pump For Sale

On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life

overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability

Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate

Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.

Video

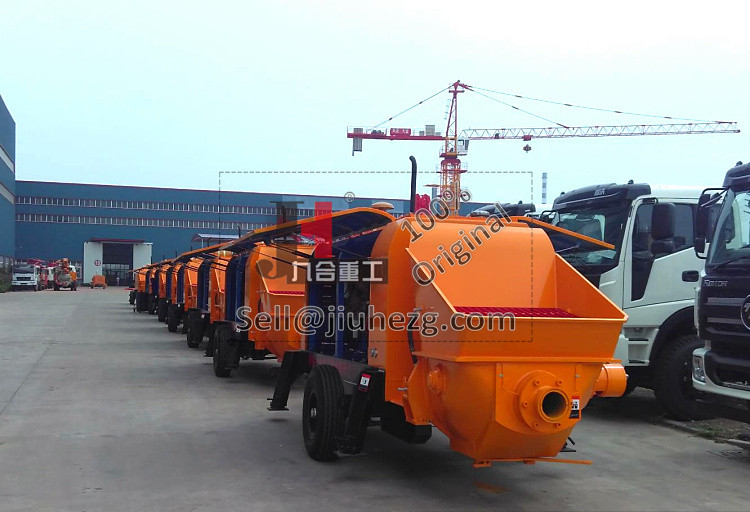

JIUHE Trailer Concrete Pump for Sale

JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:

Trailer concrete pump,

concrete line pump,

concrete pump truck,

concrete placing boom,

wet shotcrete machine,

ladder lift truck,

Aerial lift truck and so on.

Parameter

Item		Units	Technical data
Whole Machine Performance	theoretical delivery volume	m³/h	60
	theoretical delivery pressure	Mpa	12.5
	Max. delivery frequency	Times/min	22
	theoretical delivery height	m	180
	theoretical delivery distance	m	500
	Type of distribution valve		S Tube Valve
	Specification of delivery cylinder	mm	Φ200×1650
	Specification of main oil cylinder	mm	Φ125/Φ80×1650
	Oil tank capacity	L	500
	Hopper capacity	L	600
	Feeding height	mm	1400
	Outlet diameters	mm	Φ180
	Delivery pipe inner diameter	mm	Φ125
Power system	Diesel Power	Kw	130
	Rated rotate speed	r/min	2300
	Idling speed	r/min	800
	Voltage of battery cell	V	24V
	fuel tank capacity	L	150
Hydraulic system	Hydraulic oil circuit type		Open Circuit
	Max. oil pressure of main system	MPa	32
	Max. oil pressure of mixing system	MPa	14
	Max. mixing rotate speed	r/min	24
Other parameters	Concrete slump	mm	80～200
	Allowable max dia. of aggregate	mm	Pebble 50，crushed stone 40
	Dimension（length×width× height）	mm	6600×1930×2190
	Weight	Kg	6300
	Pulling speed	Km/h	≤8
