Model: DHBT50

Item specifics

Concrete pumping capactiy: 50m3/h

concrete pumping height: 150m

concrete pumping distance: 400m

System Working Pressure: 28MPa

Concrete Cylinder: 200

Max. aggregate dimension: 40mm

power system: 85kw

Hydraulic oil circuit type: Open circuit

Lubrication: auto lubrication

Review

Description

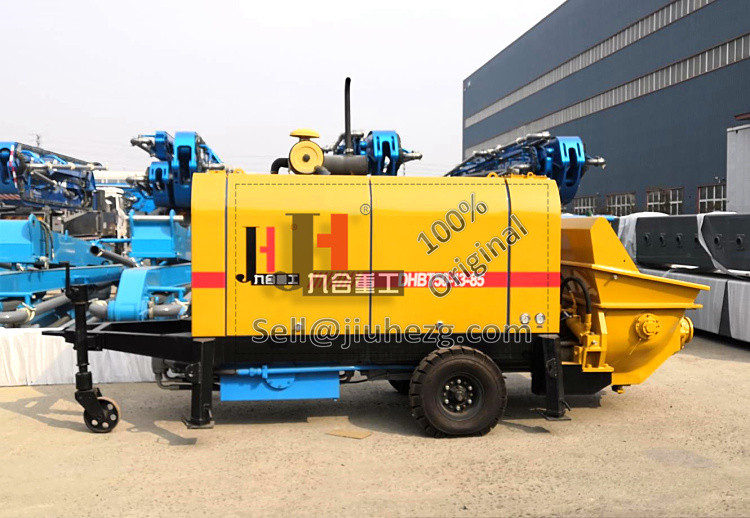

China Factory Direct Supply JIUHE Brand DHBT50 trailer concrete pump For Sale

On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life

overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability

Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate

Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.

Video

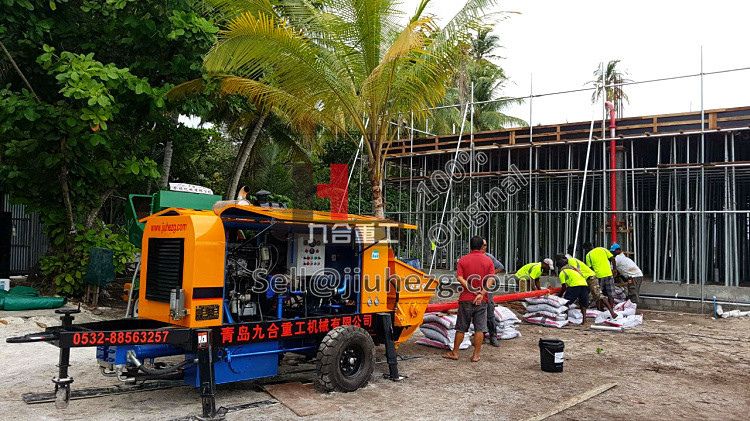

JIUHE Trailer Concrete Pump for Sale

JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:

Trailer concrete pump,

concrete line pump,

concrete pump truck,

concrete placing boom,

wet shotcrete machine,

ladder lift truck,

Aerial lift truck and so on.

Parameter

Item		Unit	Parameter
Pumping system	Max. theoretical delivery volume	m³/h	50
	Max. theoretical delivery pressure	MPa	13
	Max. delivery frequency	times/min	20
	Distribution valve type		S tube valve
	Main oil cylinder specification: cylinder dia./role dia. × stroke	mm	125/80×1200
	Concrete cylinder specification	mm	200×1200
	Hopper capacity	L	600
	Output opening diameter	mm	180
Power system	Diesel engine power	KW	85
Power system	Rated rotation speed	r/min	2200
Hydraulic system	Type of Hydraulic oil circuit		Open oil circuit
	Maximum oil pressure of pumping system	MPa	25
	Maximum oil pressure of mixing system		14
	Highest mixing speed	r/min	24
	Hydraulic oil tank capacity	L	300
	Allowable max. dia.of aggregate	mm	Pebble 50,crushed stone 40
	Inner dia.of concrete delivery pipe	mm	Φ125
	Dimension(length× width× height）	mm	5270×1860×2580
	Weight	kg	4000
