Model: DHBT40

Item specifics

Concrete pumping capactiy: 40m3/h

concrete pumping height: 120m

concrete pumping distance: 350m

System Working Pressure: 25MPa

Concrete Cylinder: 160

Max. aggregate dimension: 30mm

power system: 85kw

Hydraulic oil circuit type: Open circuit

Lubrication: auto lubrication

Review

Description

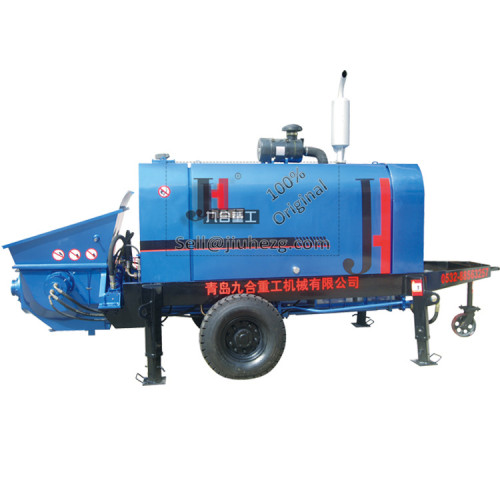

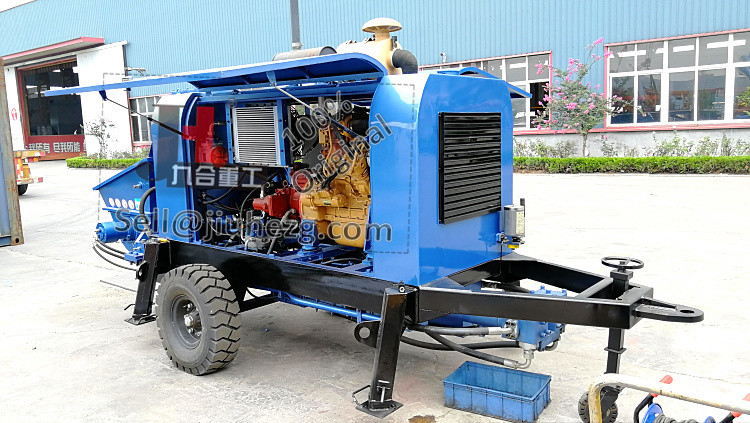

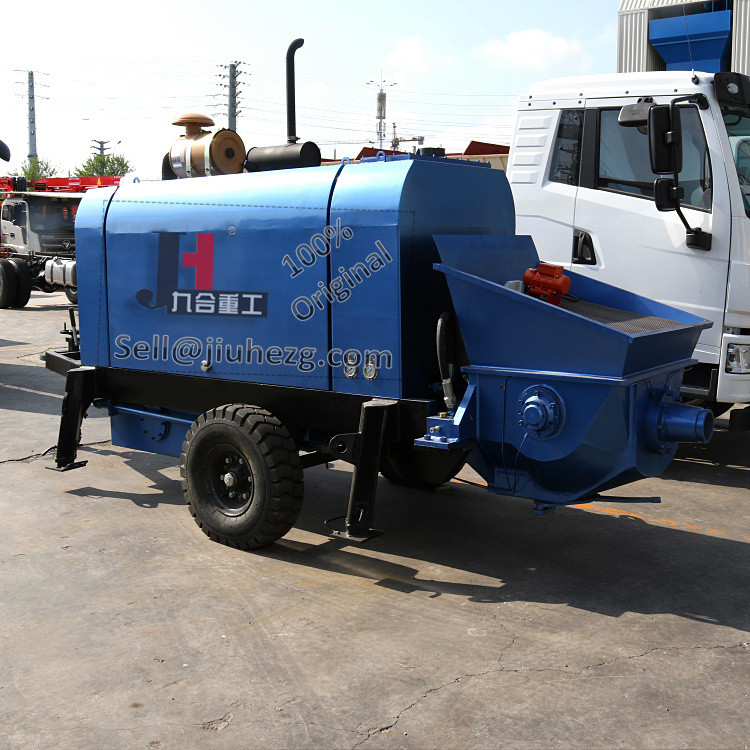

China Factory Direct Supply JIUHE Brand DHBT40 concrete pouring machine For Sale

On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life

overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability

Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate

Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.

Video

JIUHE Trailer Concrete Pump for Sale

JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:

Trailer concrete pump,

concrete line pump,

concrete pump truck,

concrete placing boom,

wet shotcrete machine,

ladder lift truck,

Aerial lift truck and so on.

Parameter

Item		Units	Technical data
Whole Machine Performance	theoretical delivery volume	m³/h	40
	theoretical delivery pressure	MPa	10
	Max. delivery frequency	Times/min	24
	theoretical delivery height	m	130
	theoretical delivery distance	m	350
	Type of distribution valve		S Tube Valve
	Specification of delivery cylinder	mm	Φ160×1200
	Specification of main oil cylinder	mm	Φ100/Φ70×1200
	Oil tank capacity	L	300
	Hopper capacity	L	400
	Feeding height	mm	1400
	Outlet diameters	mm	Φ125
	Delivery pipe inner diameter	mm	Φ100
Power system	Diesel Power	Kw	85
	Rated rotate speed	r/min	2200
	Idling speed	r/min	800
	Voltage of battery cell	V	24V
	fuel tank capacity	L	150
Hydraulic system	Hydraulic oil circuit type		Open Circuit
	Max. oil pressure of main system	MPa	25
	Max. oil pressure of mixing system	MPa	14
	Max. mixing rotate speed	r/min	24
Other parameters	Concrete slump	mm	80～200
	Allowable max dia. of aggregate	mm	≤25
	Dimension（length×width× height）	mm	4970×1680×2580
	Weight	Kg	3400
	Pulling speed	Km/h	≤8
