Model: HBT50

Item specifics

Concrete pumping capactiy: 50m3/h

concrete pumping height: 150m

concrete pumping distance: 400m

System Working Pressure: 28MPa

Concrete Cylinder: 200

Max. aggregate dimension: 40mm

power system: 55kw

Hydraulic oil circuit type: Open circuit

Lubrication: auto lubrication

Review

Description

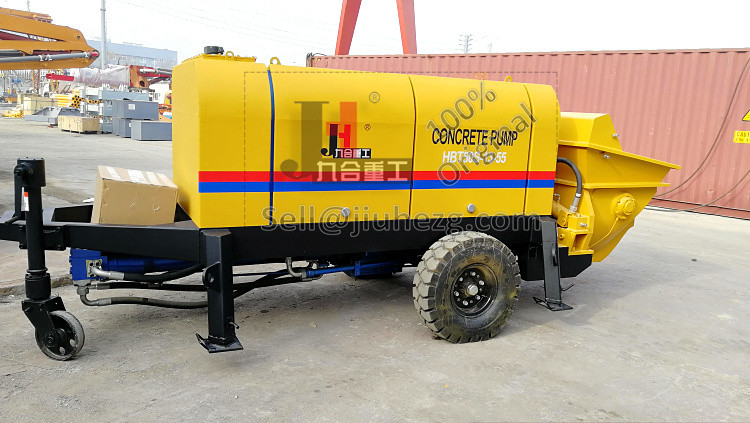

China Factory Direct Supply JIUHE Brand HBT50 trailer concrete pump For Sale

On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life

overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability

Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate

Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.

Video

JIUHE Trailer Concrete Pump for Sale

JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:

Trailer concrete pump,

concrete line pump,

concrete pump truck,

concrete placing boom,

wet shotcrete machine,

ladder lift truck,

Aerial lift truck and so on.

Parameter

Item			Unit	Parameter
Whole machine performance	Theoretical max. delivery volume		m³/h	50
	Theoretical max. delivery pressure		Mpa	12
	Max. Delivery frequency		times/min	20
	Theoretical max. Delivery distance	Vertical	m	150
		Horizontal	m	400
	Type of distribution valve			S tube valve
	Specification of delivery cylinder		mm	Φ200×1200
	Specification of main oil cylinder		mm	Φ125/Φ80×1200
	Oil tank capacity		L	300
	Hopper capacity		L	600
	Feeding height		mm	1400
	Outlet opening Diameter		mm	Φ150
	Inner dia. of delivery pipe		mm	Φ125
Power system	Main Motor power		Kw	55
	Rated voltage		V	380
	Rated speed		r/min	1480
Hydraulic system	Hydraulic oil circuit type			Open circuit
	Max. Oil pressure of pumping system		MPa	28
	Max.oil pressure of mixing system		MPa	14
	Max. Mixing speed		r/min	24
Other parameters	Allowed range of concrete slump		mm	80～200
	Max. Aggregate diameter		mm	Pebble 40，crushed stone 30
	Dimension (length×width×height)		mm	5270×2000×1840
	Overall weight		Kg	3500
	Pulling speed		Km/h	≤8
