Concrete boom pump | JIUHE 30M 38M 52M 62M 70M| sale for construction| china factory
- Model
- 30M 38M 52M 62M 70M
Item specifics
- Max concrete placing height
- 30M 38M 52M 62M 70M
- Suitable Chassis brand
- Sinotruck/Foton/Shacman
- Suitable Chassis engine power
- 280HP-510HP
- Total Weight
- 13.5-45ton
- Main Hydraulic Pump
- Rexroth/Push
- System Working Pressure
- 31.5MPa
- Boom Type
- RZ
- Hydraulic Oil Cooling
- forced-air cooling
- Concrete Cylinder
- 260
- Max. aggregate dimension
- 40mm
- Concrete pumping capactiy
- 90-180m3/h
- Legs Open
- X-R
- Boom Control Mode
- Electric proportion
Review
Description
China Factory Direct Supply JIUHE Brand 30M 38M 52M 62M 70M Concrete boom pump
JIUHE NEW concrete pump truck for sale are competitive products designed by JIUHE MACHINERY.this concrete boom pump truck for sale is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. boom structures are flexible, the truck move easily, safe and stable. Available model vary from 30m to 70m, full range concrete boom pump truck for sale can meet you various need for concrete pumping project.
Features
Intelligence
Full hydraulic control technology
Fast fault location, saving time more than 50% in fault detection.
Electric control system
Intelligent electric control system, simple structure, reducing electric faults.
Safety
Hydraulic oil level Auto-detection and radiating technology
Auto-detect hydraulic oil and temperature, protecting hydraulic system.
Intelligent safety technology
All weld lines by 100% nondestructive flaw detection.
High efficiency
Full hydraulic commutation technology
Commutation time 10% lower, pumping efficiency 20% higher.
Advance Jib structure technology
Flexible and efficient placing, no blind angle.
Video
JIUHE Concrete boom pump for Two to Five Axles
JIUHE is professional manufacturer in China for concrete pump truck vary from 30m to 70m, we are factory directly supply, both quality and service can be ensured. without truck, only concrete boom pump is also hot sale model.
JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter
|
Model |
30 |
38 |
52 |
58 |
62 |
70 |
|
Max vertical height (M) |
29.2 |
38 |
51.3 |
58 |
62 |
69.3 |
|
Max horizontal radius (M) |
25.6 |
34 |
47.5 |
53.1 |
57.5 |
65.3 |
|
Max working depth (M) |
17.3 |
25 |
36.8 |
45 |
45.1 |
51.8 |
|
Boom section No. |
4 |
5 |
6 |
6 |
6 |
6 |
|
Rotating angle of turret |
360° |
360° |
360° |
360° |
360° |
360° |
|
Opening mode of landing leg |
X-H |
X-R |
X-R |
X-R |
X-R |
X-R |
|
Length of end hose (MM) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Diameter of concrete delivery pipe (MM) |
125 |
125 |
125 |
125 |
125 |
125 |
|
Form of concrete distribution valve |
S Valve |
SValve |
SValve |
SValve |
SValve |
SValve |

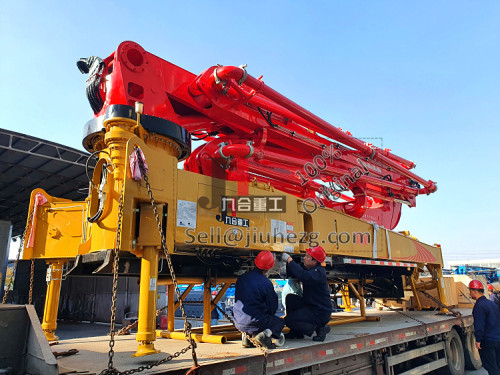

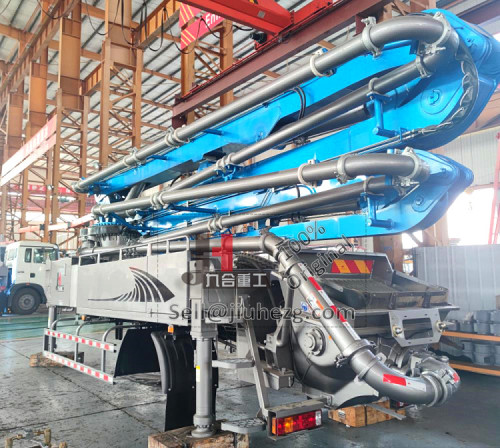

Machine Photo
