Concrete pump truck | JIUHE 38M | sale for construction | china factory
- Model
- 38M
Item specifics
- Max concrete placing height
- 38m
- Max concrete placing radius
- 34m
- Max concrete placing depth
- 25m
- Chassis brand
- sinotruk
- Chassis engine power
- 310HP
- Total Weight
- 26ton
- Main Hydraulic Pump
- Rexroth/Push
- System Working Pressure
- 31.5MPa
- Boom Type
- RZ
- Hydraulic Oil Cooling
- forced-air cooling
- Concrete Cylinder
- 230
- Max. aggregate dimension
- 40mm
- Concrete pumping capactiy
- 90m3/h
- Legs Open
- X-R
- Boom Control Mode
- Electric proportion
Review
Description
China Factory Direct Supply JIUHE Brand 38M Concrete Pump Truck For Sale
JIUHE NEW concrete pump truck for sale are competitive products designed by JIUHE MACHINERY.this concrete boom pump truck for sale is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. boom structures are flexible, the truck move easily, safe and stable. Available model vary from 30m to 70m, full range concrete boom pump truck for sale can meet you various need for concrete pumping project.
Features
Intelligence
Full hydraulic control technology
Fast fault location, saving time more than 50% in fault detection.
Electric control system
Intelligent electric control system, simple structure, reducing electric faults.
Safety
Hydraulic oil level Auto-detection and radiating technology
Auto-detect hydraulic oil and temperature, protecting hydraulic system.
Intelligent safety technology
All weld lines by 100% nondestructive flaw detection.
High efficiency
Full hydraulic commutation technology
Commutation time 10% lower, pumping efficiency 20% higher.
Advance Jib structure technology
Flexible and efficient placing, no blind angle.
Video
JIUHE 38M Concrete Pump Truck for Sale
JIUHE is professional manufacturer in China for concrete pump truck vary from 30m to 70m, we are factory directly supply, both quality and service can be ensured.
JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

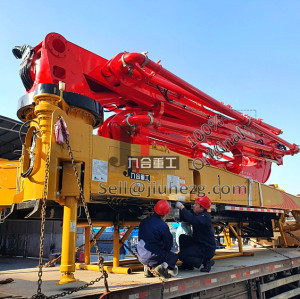

Machine Photo
